Full Voltage 110-240V LED Lighting Power Supply Drive under Cabinets And Wardrobes

Cabinet & wardrobe lighting power supply

Full voltage [Input and Output]: Input: 12V100W-240V 36W 60W 100W
Output: 12V

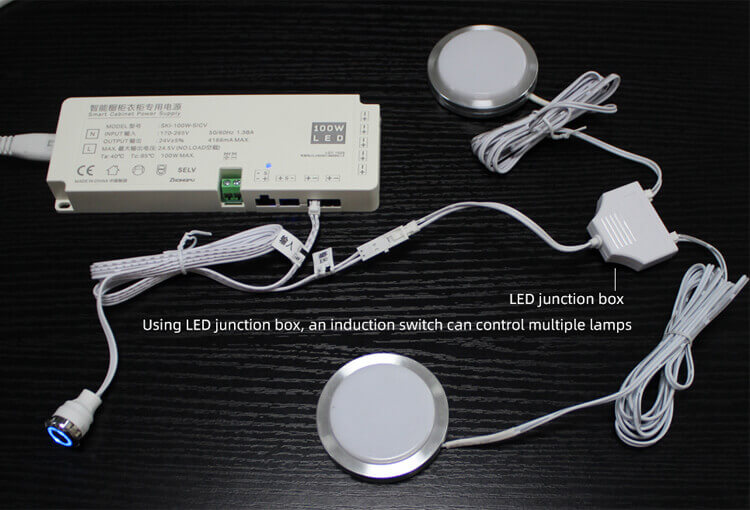

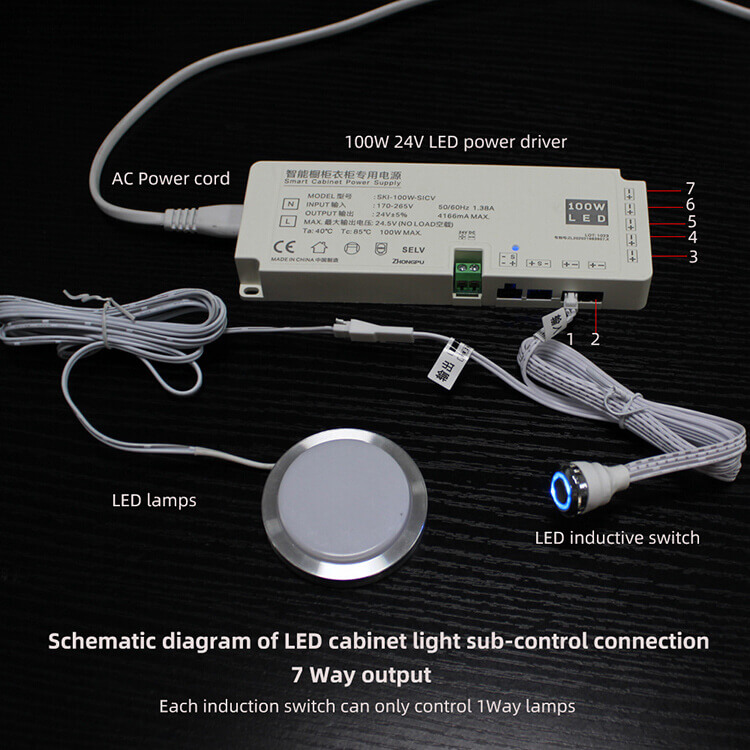

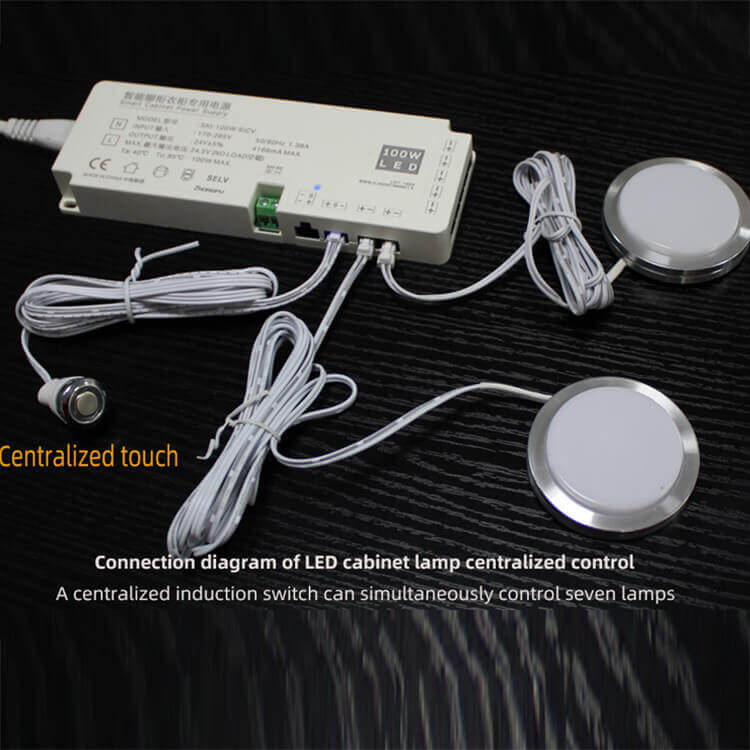

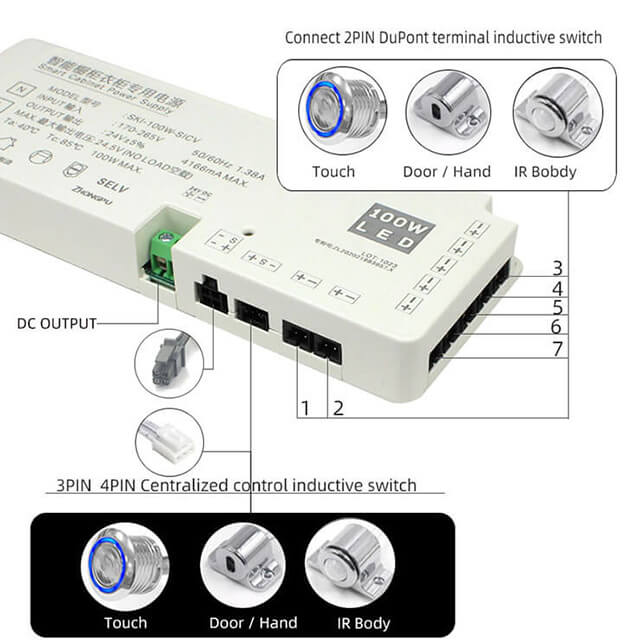

Unique design】Mutiple female JST ports in two sides. the 3Pin port can be conneted to a variety 3Pin wired switch. It only can controll the lights which connect the same side 2Pin JST port. the led driver also have 5 2Pin JST female ports on other side which work independently with wired switch.
【Easy to install】The led transformer was equipped with 5.9ft removable AC cord and two screws. The led driver thickness is only 0.63 inch. It can be hidden behind under cabinets easyly, It is very convinent for DIY project.

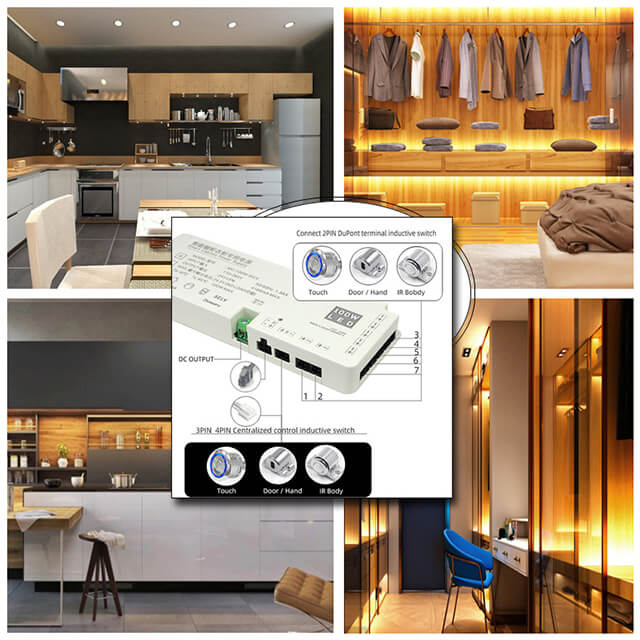

[Wide Application】The led power supply is especially suitable for LED under cabinet lighting,LED strip lights, LED puck lights, LED panel lights, LED jewelry lights and any other 24V DC LED lamps

12V 100W:	full voltage 100-240V 8333mA
12V 60W:	full voltage 100-240V 500mA
12V36W:	full voltage 100-240V 300mA
Availability:

Quantity:



Inquire Add to Basket

Model:

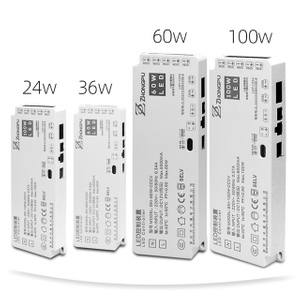

12V 100W 60W 36W 24W
Brand:
ZP

Product Description

100w-01

Product Description

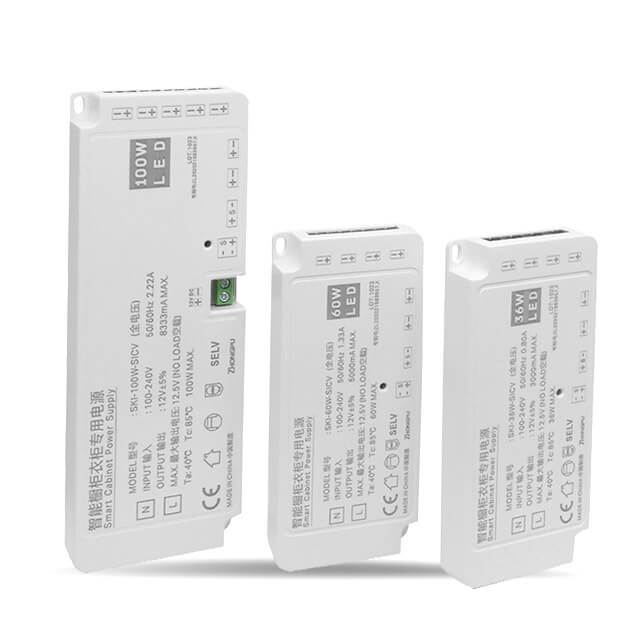

Full voltage Input100-240V 12V 100W 60W 36W LED driver

* Short circuit protection

* Overvoltage protection
* overload protection

* High temperature protection

* Certification: CE, RoHS, CCC

----------------------------------------------------------------------------------------------------------------------------

100W

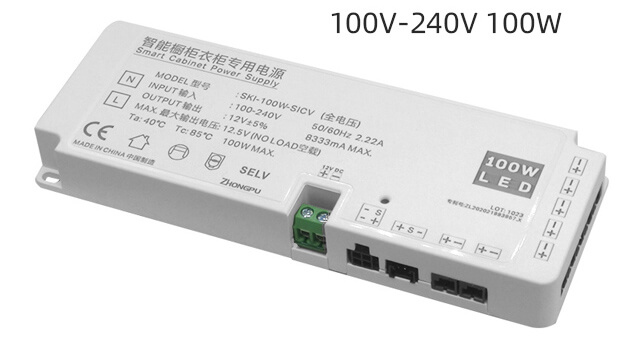

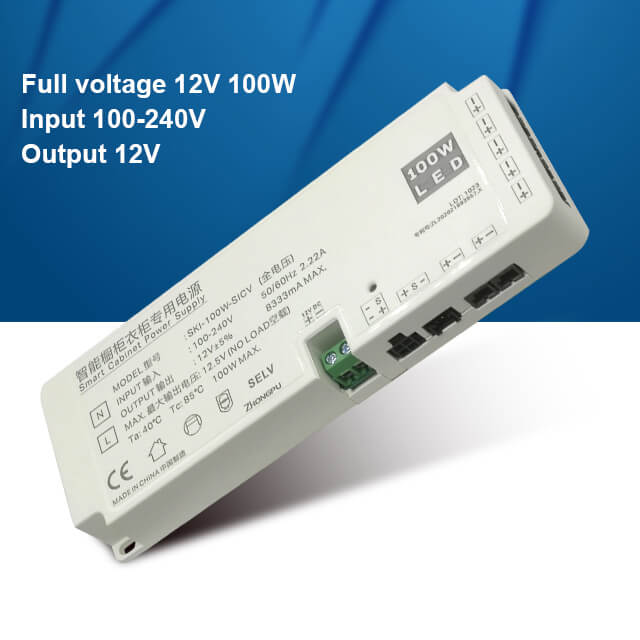

MODEL: 12V100W ( Full voltage)
INPUT: 100-240V 50/60Hz 2.22A
OUTPUT: 12V ±5% 8333mA MAX
MAX: 12.5V(NO LOAD)

W.G: 0.26KG

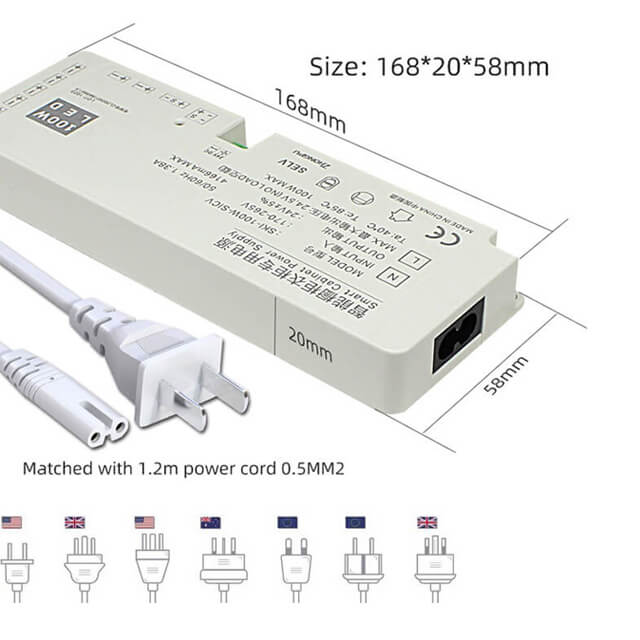

Size: 16.8*5.8*1.8cm

----------------------------------------------------------------------------------------------------------

60w

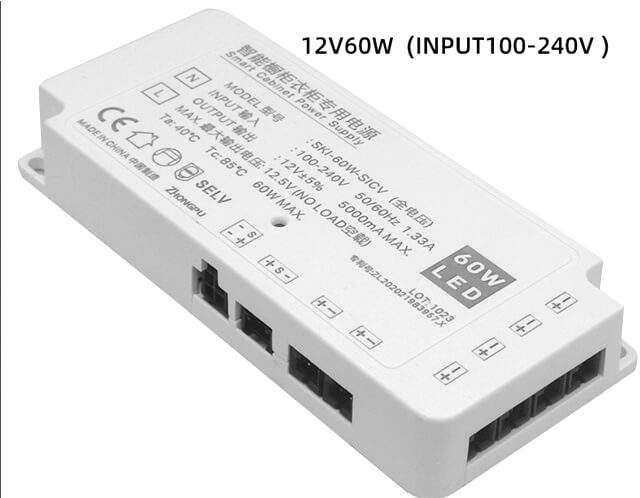

MODEL: 12V 60W (Full voltage)
INPUT: 100-240V 50/60Hz 1.33A
OUTPUT: 12V ±5% 5000mA MAX
MAX: 12.5V(NO LOAD)
W.G: 0.16KG
Size: 11.8*5*1.8cm

------------------------------------------------------------------------------------------------------------------

36W

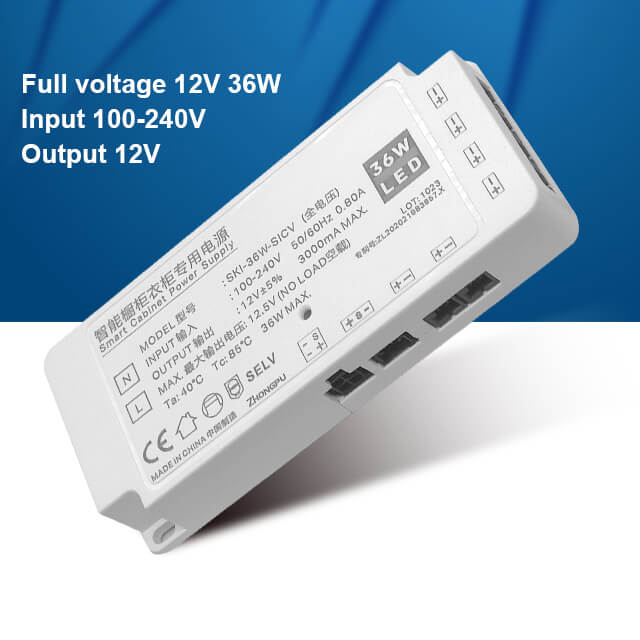

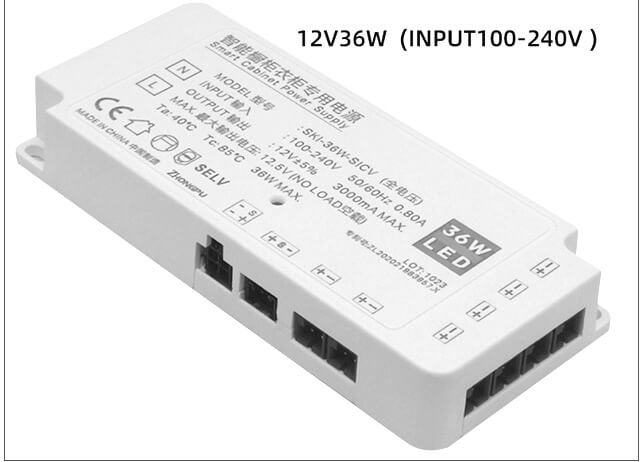

MODEL: 12V 36W (Full voltage)
INPUT: 100-240V 50/60Hz 0.8A
OUTPUT: 12V ±5% 3000mA MAX
MAX: 12.5V(NO LOAD)
Size: 11.8*5*1.8cm
W.G: 0.16KG

--------------------------------------------------------------------------------------------------------------------

d-2 d-1

24V-100W-02-01 24V-100W-05(1) 分控连接-750-011(1) 分控750-1(1)

LED Light Driver led power supply cablinet wardrobe lighting 12v led power supply driver Lighting power supply full voltag driver
