2464-22awg 3c
zhongpu

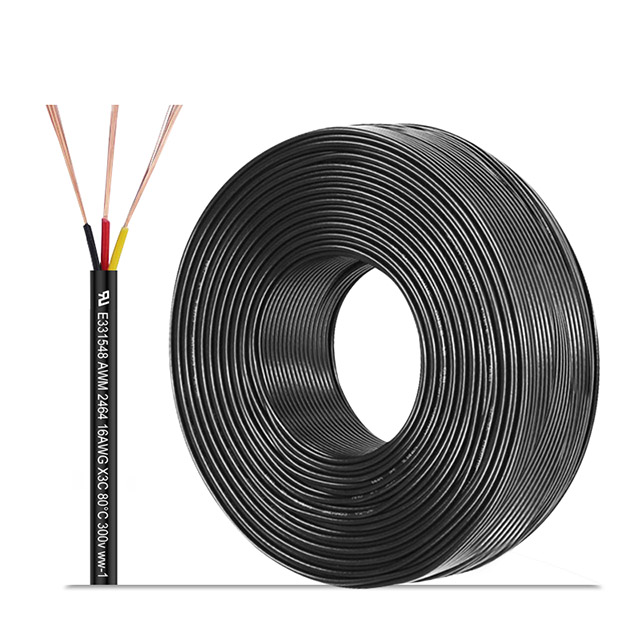

UL 2464 PVC Insulated Flexible Control Cable
| Color | 24AWG *3C 22AW*3C 20AWG*3C 18AWG*3C 16AWG *3C |
| Brand | ZHONGPU |
| Material | Polyvinyl Chloride |

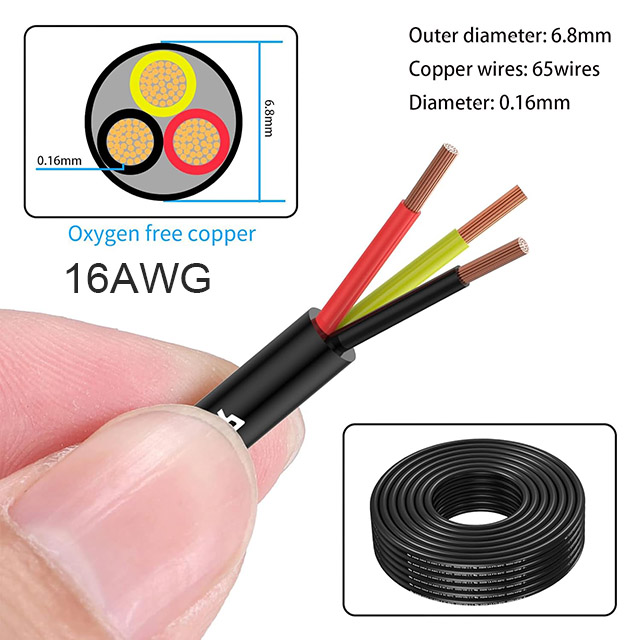

| Number of Cable Strands | 24AWG 3C*11/0.16AS OD3.5mm 22AWG 3C 17/0.16 AS OD4.0mm 20AWG 3C* 26/0.16AS OD4.5mm 18AWG 3C*41/0.16AS 5.5 16AWG 3C* 65/0.16AS OD6.0mm |
| Voltage | 300 Vol |
● Rated temperature: 80 ℃
● Rated voltage: 300V
● Reference standard: UL758, UL1581,CSA C22.2No.210.2
● Conductors using single or twisted 32-16AWG tinned or bare copper
● SR-PVC insulation, in compliance with ROHS environmental standards
● Tin plated or bare copper braided shielding
● PVC sheath, compliant with ROHS environmental standards
● Passed UL VW-1, CSA FT1, and JQA-F Mark flame retardant testing
● Use standard insulation thickness, easy to cut wire, and easy to peel
● Used for connecting wires inside computers or machines
High Conductivity: 17 strands of 0.16 copper wire are inside each circuit. High precision Oxygen-free copper conducts electricity well. Compared with aluminum materials, it has lower resistance and higher conductivity.
Durable Material: The jacket/insulation materials are PVC(RoHs), which protects the wire against abrasion, resistant to sunlight and chemicals. The rated operating temperature up to 80℃/176℉.
Easy to Use: The Red & Black Pure coppe Hookup Wire is flexible, easy to solder, that is for low voltage(5V-12V-24V-120V-240V ) installations.
Wide range of uses: cable extension cords are very suitable for LED monochromatic light strips, electronic appliances and equipment, transformers, led lights, led splitter connections, Outdoor Lighting，Automotive Battery，Solar Panel，inverter etc.
High Quality: We commit to provide high quality products and customer satisfaction, The electricity wire we provided passed UL harsh testing that guaranteed long lifespan usage.
